HPC-1603-1
The Rawl Springs
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Floor Plans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| The "open" nature of this home's floorplan is designed to meet the needs of many homeowners and builders who are looking to build on a relatively narrow lot. The focal point of the great room is the entertainment center. The open area boasts a raised bar for conversations with family and friends while isolating them away from the work triangle. The master suite has great amenities with a trayed ceiling, large garden tub, oversized shower, linen, large closet, and is located next to the flex space that may serve as an office, nursery, or hobby room. A spaciouse patio lends itself to grilling out, sunbathing, and visiting with friends. Large garage features well-sized storage space. A plan that meets the needs of the busy family! |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 1603 | Width: | 50 ft. - 0 in. | ||
| Unheated Sq Ft: | 570 | Depth: | 65 ft. - 0 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace | Exterior: | Brick / Siding | ||
| Garage: | Yes | # of Cars: | 2 | ||
| Roof Pitch: | 10 in 12 | Sec. Roof Pitch: | None | ||
| # of Floors: | 1 | Bonus Room: | No | ||
| Roof Type: | Hip/Gable | Main Ceiling Height: | 9 ft.-0 in. | ||
| Ridge Height: | 20 ft. - 2 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1525.00 | Reproducible Sets: | $1085.00 | ||
| PDF Files: | $1020.00 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $920.00 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | $860.00 | ||
| Review Set: | Unavailable | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($130.00) | Right-Reading Reversed Sets: | Yes ($150.00) | ||
| Mirror-Reversed Sets: | Yes ($50.00) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($60.00)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

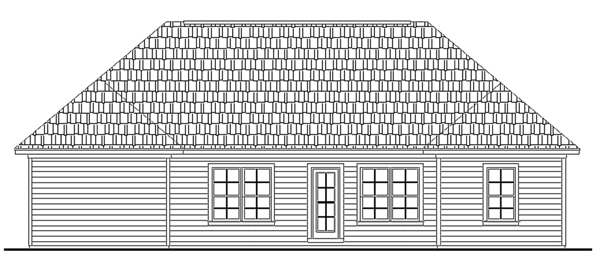

 Unique House Plans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Houseplans and related home images are COPYRIGHTED © by home designers and architects. Designer Comments: Garage: 498 sq. ft., Storage: 42 sq. ft. |
|
