HPC-1002-1
The Sierra
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| This design includes many requested features, and is a two car garage version of one of our most popular houses. The plan features 9' ceilings, two large bedrooms, two baths (one with oversized jet tub, and one with tub/shower combination), two raised bars for informal visiting with friends and family, a sunroom, separate laundry, linen, pantry, gas logs and plenty of built-ins. These features make this a very functional and fun home to live in! |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 1002 | Width: | 52 ft. - 0 in. | ||
| Unheated Sq Ft: | 683 | Depth: | 38 ft. - 4 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace | Exterior: | Siding | ||
| Garage: | Yes | # of Cars: | 2 | ||
| Roof Pitch: | 6 in 12 | Sec. Roof Pitch: | None | ||
| # of Floors: | 1 | Bonus Room: | No | ||
| Roof Type: | Gable | Main Ceiling Height: | 9 ft.-0 in. | ||
| Ridge Height: | 18 ft. - 2 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1465.00 | Reproducible Sets: | $1025.00 | ||
| PDF Files: | $955.00 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $830.00 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | $770.00 | ||
| Review Set: | Unavailable | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($130.00) | Right-Reading Reversed Sets: | Yes ($150.00) | ||
| Mirror-Reversed Sets: | Yes ($50.00) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($60.00)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

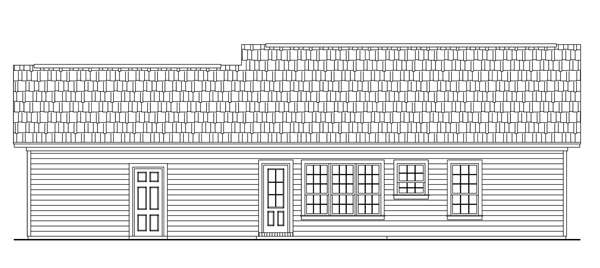

 Homeplans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Floorplans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Homeplans and related home images are COPYRIGHTED © by home designers and architects. Designer Comments: Garage: 546 sq. ft., Storage: 48 sq. ft. |
|
