HPC-1610-43
Pine Haven 4.1
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
Floorplans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| This cabin is designed for a sloping lot and perfect for a view. It has one bedroom on the main level, two on the second level and the option of finishing the basement to have four bedrooms total. Large windows overlook the deck allowing scenic views. |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 1610 | Width: | 45 ft. - 0 in. | ||
| Unheated Sq Ft: | 168 | Depth: | 46 ft. - 0 in. | ||
| Avail. Foundation(s): | Basement | Exterior: | Siding / Wood | ||
| Garage: | No | # of Cars: | n/a | ||
| Roof Pitch: | 12 in 12 | Sec. Roof Pitch: | None | ||
| # of Floors: | 3 | Bonus Room: | NO | ||
| Roof Type: | Gable | Main Ceiling Height: | 10 ft.-0 in. | ||
| Ridge Height: | 27 ft. - 2 in. | Exterior Wall Type: | 2x6 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $2025 | Reproducible Sets: | Unavailable | ||
| PDF Files: | $1475 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $1640 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | Unavailable | ||
| Review Set: | $1110 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($295) | Right-Reading Reversed Sets: | Yes ($200) | ||
| Mirror-Reversed Sets: | Yes ($) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($35)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

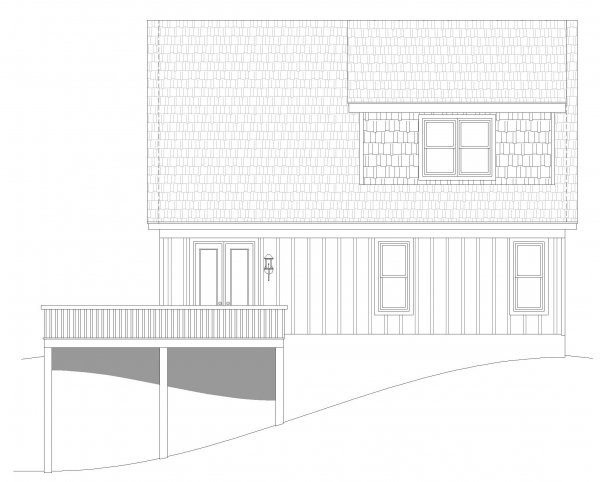

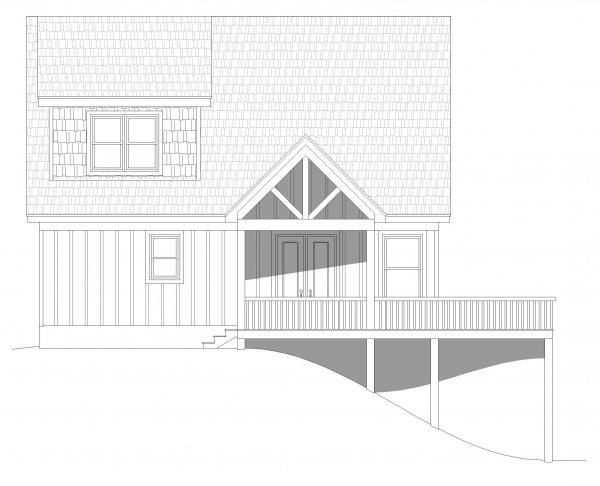

 Home Designs and related home images are COPYRIGHTED © by home designers and architects. Second Floor/Bonus:   Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Basement:   House Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Home Plans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Unique House Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   House Floorplans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   >Floorplans and related home images are COPYRIGHTED © by home designers and architects.  |
|
