HPC-1615-43
Persimmon Hill Barn
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Plans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| vaulted 5'-9" to 16'-2" ht ceilings up |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 1615 | Width: | 55 ft. - 0 in. | ||
| Unheated Sq Ft: | 3070 | Depth: | 74 ft. - 0 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace / Basement | Exterior: | Siding | ||
| Garage: | No | # of Cars: | n/a | ||
| Roof Pitch: | 10 in 12 | Sec. Roof Pitch: | 4 in 12 | ||
| # of Floors: | 2 | Bonus Room: | NO | ||
| Roof Type: | Gable | Main Ceiling Height: | 10 ft.-0 in. | ||
| Ridge Height: | 27 ft. - 11 in. | Exterior Wall Type: | 2x6 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1575 | Reproducible Sets: | Unavailable | ||
| PDF Files: | $1075 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $1240 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | Unavailable | ||
| Review Set: | $810 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($295) | Right-Reading Reversed Sets: | Yes ($200) | ||
| Mirror-Reversed Sets: | Yes ($) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($35)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

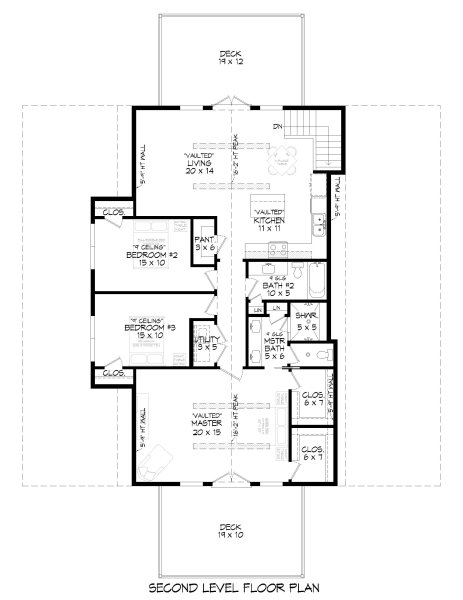

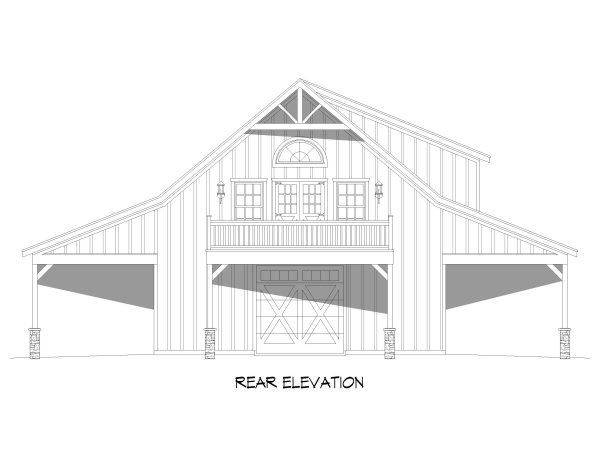

 Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Second Floor/Bonus:   Home Designs and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   House Designs and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   House Designs and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   >Homeplans and related home images are COPYRIGHTED © by home designers and architects.  |
|
