HPC-1690-37
Barclay
House Floorplans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.

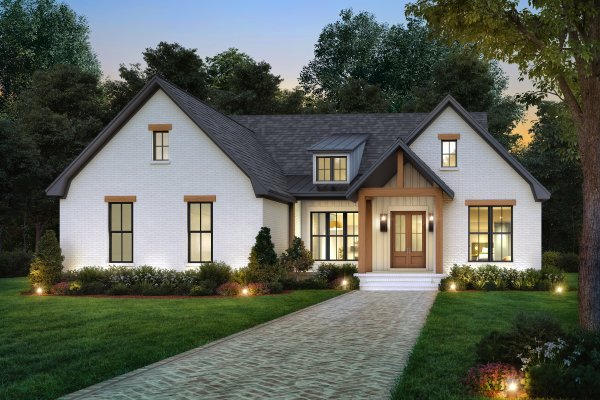

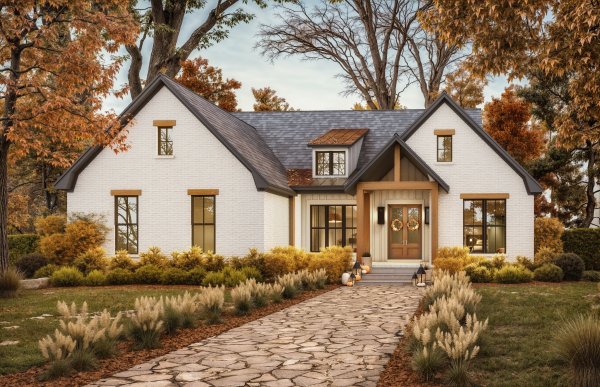

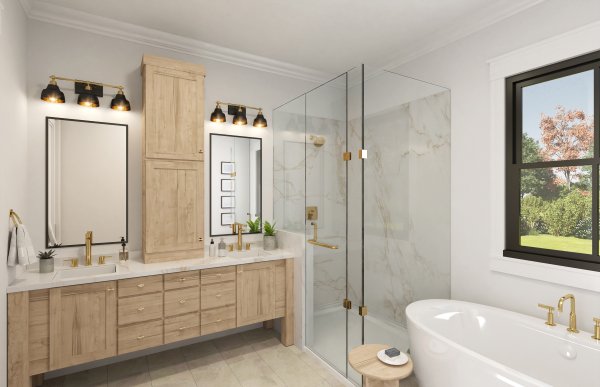

| Transitional style design with three bedrooms and two baths at only 1690 square feet. Design offers open split plan with volume ceilings, walk-in-pantry and mud room. The main bedroom suite offers large closet and bath with stand alone tub and large custom shower. |
|
|
|
|
||
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 1690 | Width: | 55 ft. - 4 in. | ||
| Unheated Sq Ft: | 1030 | Depth: | 53 ft. - 4 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace | Exterior: | Brick / Siding | ||
| Garage: | Yes | # of Cars: | 2 | ||
| Roof Pitch: | 12 in 12 | Sec. Roof Pitch: | 4 in 12 | ||
| # of Floors: | 1 | Bonus Room: | NO | ||
| Roof Type: | Gable | Main Ceiling Height: | 10 ft.-0 in. | ||
| Ridge Height: | 26 ft. - 3 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $2445 | ||||
| PDF Files: | $1345 | ||||
| 5 Set Package: | $1595 |
||||
| Review Set: | Unavailable | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($0) | Right-Reading Reversed Sets: | Yes ($225) | ||
| Modifications: | No | Extra Sets: | $100 | ||
| Basement Foundation Option: | $395 | ||||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

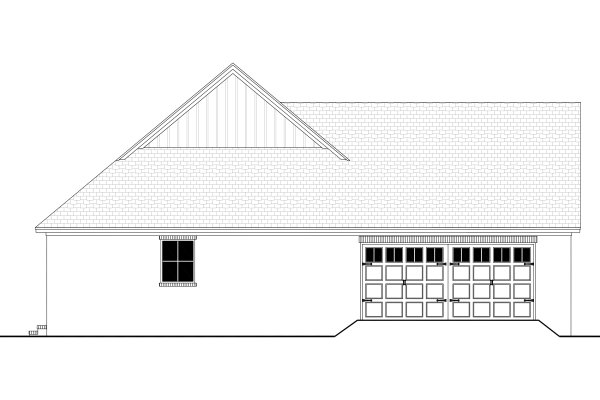

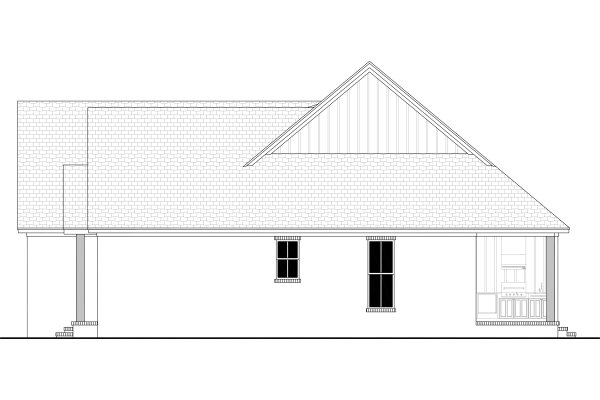

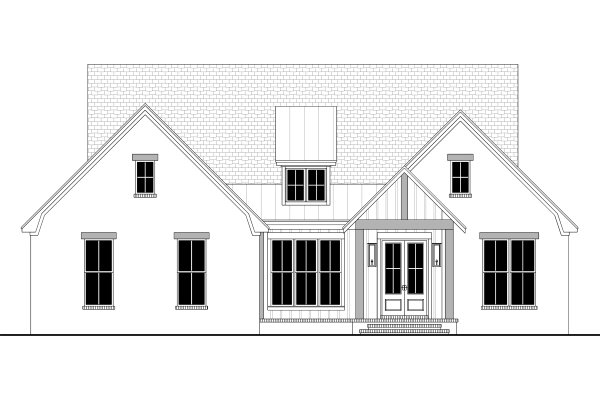

 Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Basement:   House Designs and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Homeplans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   House Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   >House Designs and related home images are COPYRIGHTED © by home designers and architects.         |
|
