HPC-4068-43
Arley Pine Haven
Home Plans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| This cabin is designed for a sloping lot and perfect for a view. It has one bedroom on the main level with the option of finishing the basement to have a large family room and two additional bedrooms with the option for a third. The upstairs has two bedrooms connecting to a loft with a full bath. Large windows overlook the deck allowing scenic views |
|
|
|
|
||
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 4068 | Width: | 48 ft. - 0 in. | ||
| Unheated Sq Ft: | 1543 | Depth: | 55 ft. - 0 in. | ||
| Avail. Foundation(s): | Basement | Exterior: | Siding / Wood | ||
| Garage: | No | # of Cars: | n/a | ||
| Roof Pitch: | 12 in 12 | Sec. Roof Pitch: | 9 in 12 | ||
| # of Floors: | 3 | Bonus Room: | No | ||
| Roof Type: | Gable | Main Ceiling Height: | 9 ft.-0 in. | ||
| Ridge Height: | 24 ft. - 10 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $2925 | ||||
| PDF Files: | $2375 | ||||
| 5 Set Package: | $2625 |
||||
| Review Set: | $1785 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($450) | Right-Reading Reversed Sets: | Yes ($300) | ||
| Modifications: | Yes | Extra Sets: | Yes ($50) (Call for Pricing) | ||
| Basement Foundation Option: | Call for Availability | ||||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

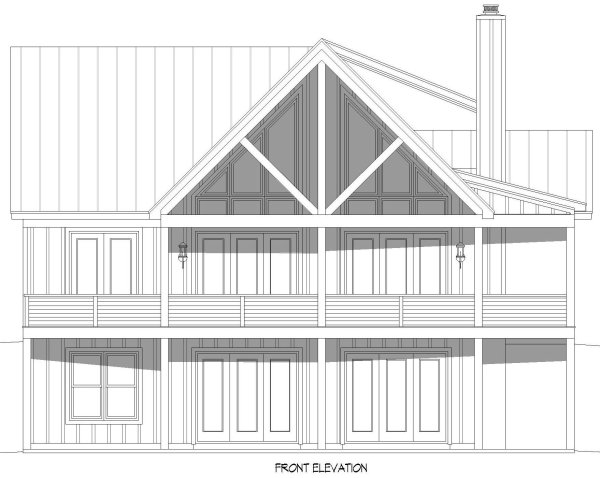

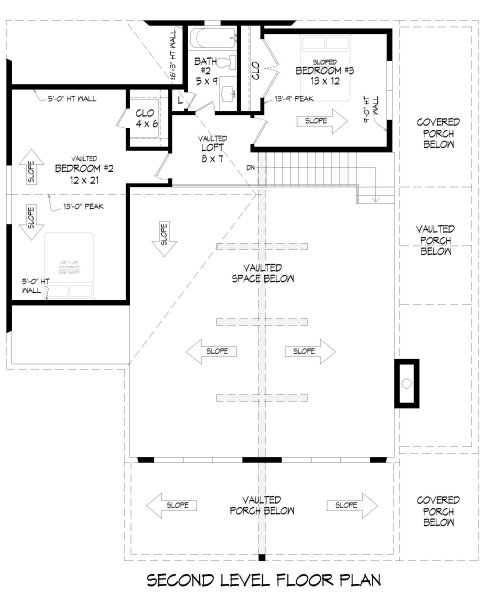

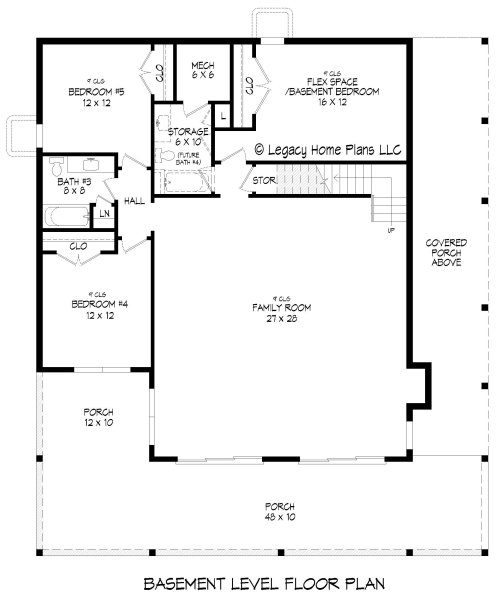

 House Plans and related home images are COPYRIGHTED © by home designers and architects. Second Floor/Bonus:   House Designs and related home images are COPYRIGHTED © by home designers and architects. Basement:   Houseplans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Home Plans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Home Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   House Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   >Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects.  |
|
