| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Floor Plans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| Two Story Five Bedrooms Four and a half Bathrooms plus Cabana Bath Three car Garage This Spanish style manor offers an enormous amount of living space Columns and arches provide a majestic appearance Luxurious inside and out Covered balconies and Lanai Study / Den provides a cozy retreat to entertain special guests Paneled double front doors with transom accent the covered entrance Chef’s dream Kitchen with island, eating bar and Cafe opens to the large Family Room Luxurious Master Suite with enormous Walk-In-Closets, tray ceilings with regal Master bath with sitting area Large Living Room with wet bar The exquisite arrangement of the covered entry and formal foyer make a dramatic first impression invites guests through a columned vestibule into the Living Room |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 5204 | Width: | 65 ft. - 2 in. | ||
| Unheated Sq Ft: | 1237 | Depth: | 78 ft. - 6 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace / Basement | Exterior: | Stucco | ||
| Garage: | Yes | # of Cars: | 3 | ||
| Roof Pitch: | 5 in 12 | Sec. Roof Pitch: | None | ||
| # of Floors: | 2 | Bonus Room: | No | ||
| Roof Type: | Hip | Main Ceiling Height: | 11 ft.-0 in. | ||
| Ridge Height: | 32 ft. - 4 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1900.00 | Reproducible Sets: | $1500.00 | ||
| PDF Files: | Unavailable | 10 Set Package: | Unavailable | ||
| 8 Set Package: | $1200.00 | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $1125.00 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | $1075.00 | 1 Set Package: | $1000.00 | ||
| Review Set: | $150.00 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($) | Right-Reading Reversed Sets: | Yes ($250.00) | ||
| Mirror-Reversed Sets: | Yes ($) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($50.00)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

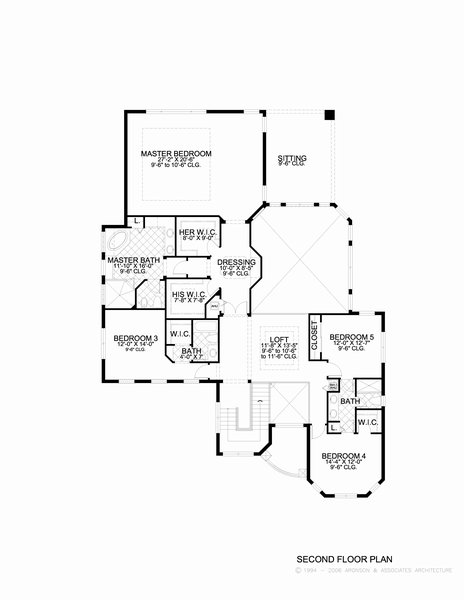

 House Plans and related home images are COPYRIGHTED © by home designers and architects. Second Floor/Bonus:  House Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:  Floor Plans and related home images are COPYRIGHTED © by home designers and architects. |
|
