HPC-9190-43
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Designs and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| LUXURY HOUSE THAT WILL MAKE THE WHOLE FAMILY ENJOY BEING AT HOME, GREAT OPEN SPACE, LIBRARY, GYMNASIUM, AND WINE CELLAR. |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 9190 | Width: | 190 ft. - 0 in. | ||
| Unheated Sq Ft: | 3175 | Depth: | 102 ft. - 0 in. | ||
| Avail. Foundation(s): | Slab | Exterior: | |||
| Garage: | Yes | # of Cars: | 4 | ||
| Roof Pitch: | 10 in 12 | Sec. Roof Pitch: | 16 in 12 | ||
| # of Floors: | 2 | Bonus Room: | YES | ||
| Roof Type: | Hip/Gable | Main Ceiling Height: | 12 ft.-0 in. | ||
| Ridge Height: | 40 ft. - 10 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $4445 | Reproducible Sets: | Unavailable | ||
| PDF Files: | $3695 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $3945 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | Unavailable | ||
| Review Set: | $2775 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($call for quote) | Right-Reading Reversed Sets: | Yes ($300) | ||
| Mirror-Reversed Sets: | Yes ($) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($50)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

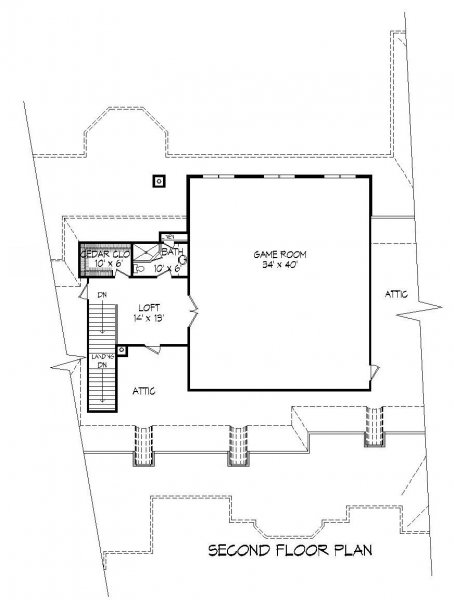

 Houseplans and related home images are COPYRIGHTED © by home designers and architects. Second Floor/Bonus:   Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Houseplans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   House Floor Plans and related home images are COPYRIGHTED © by home designers and architects. |
|
